功率范圍
RJ-SLS110-50W-1

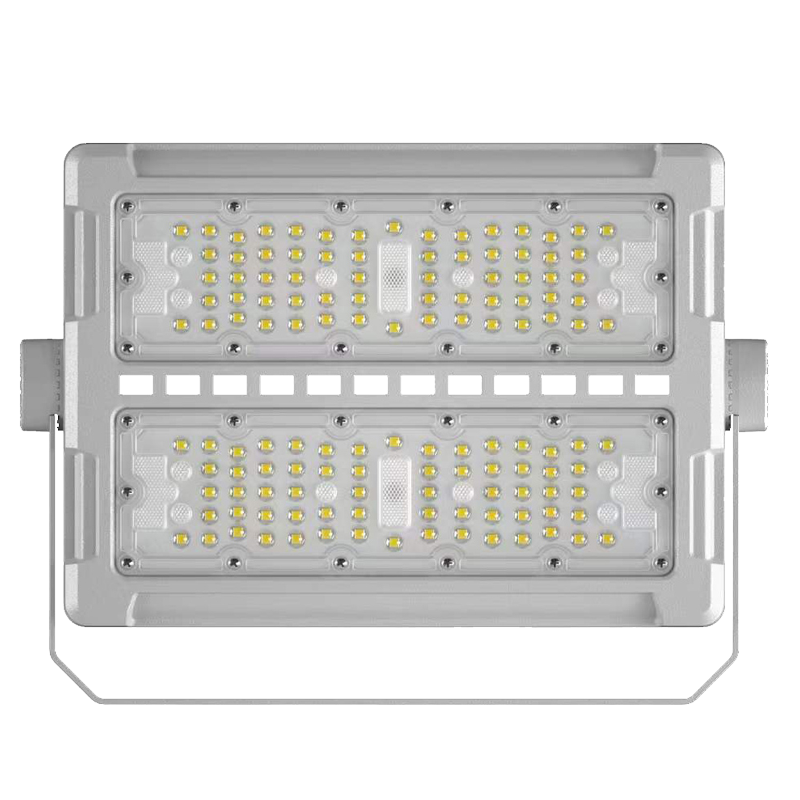

SLS110-100W-2

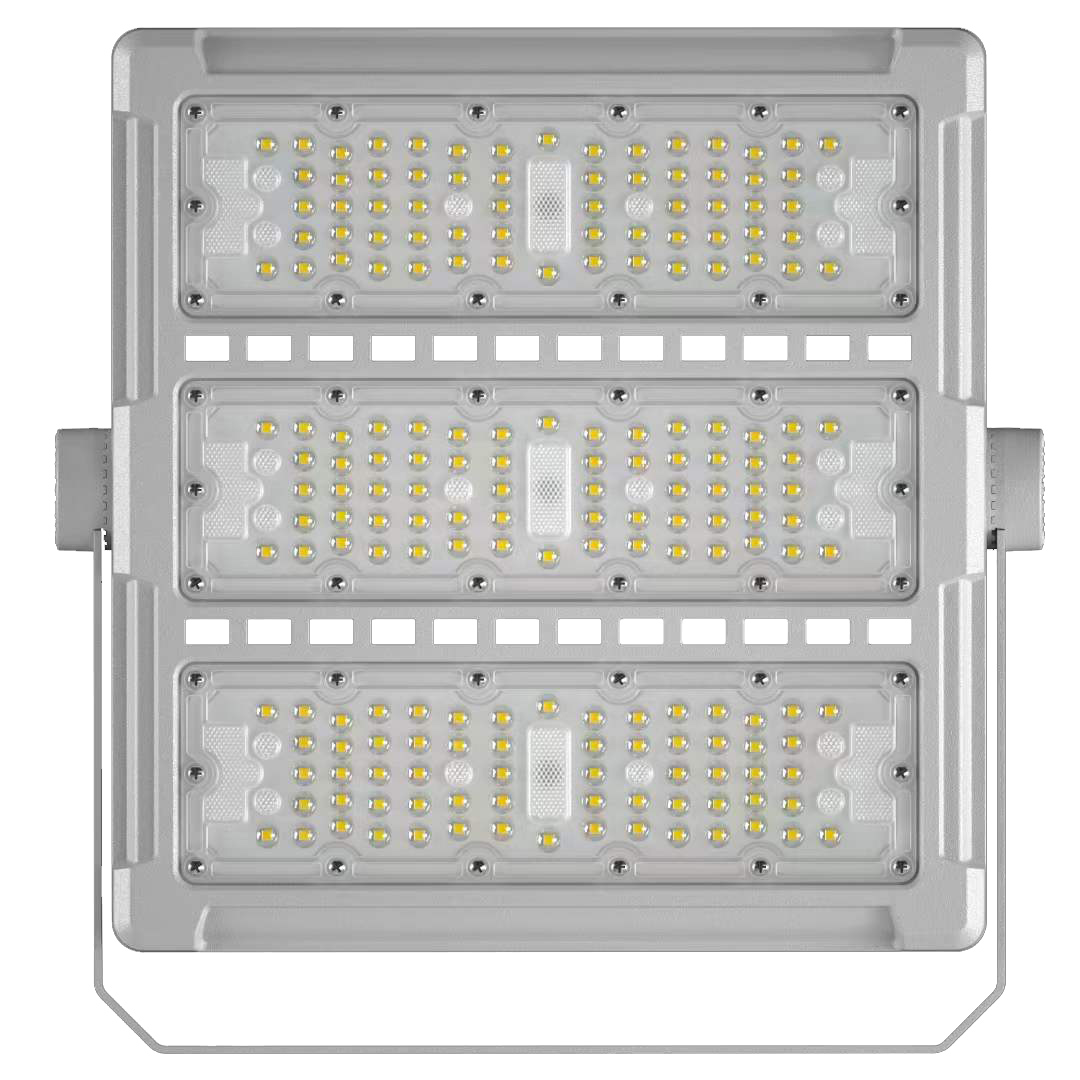

SLS110-150W-3
SLS110-200W-4

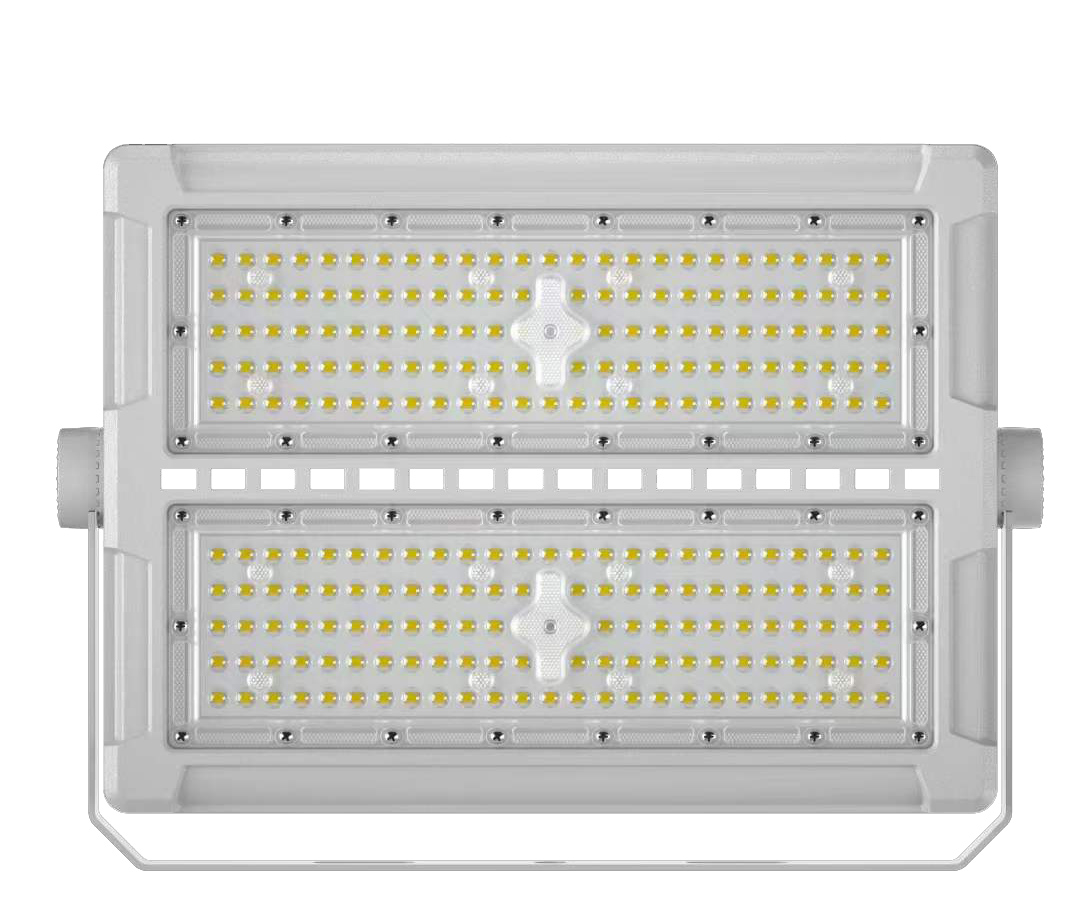

SLS110-200W-2
SLS110-250W-3

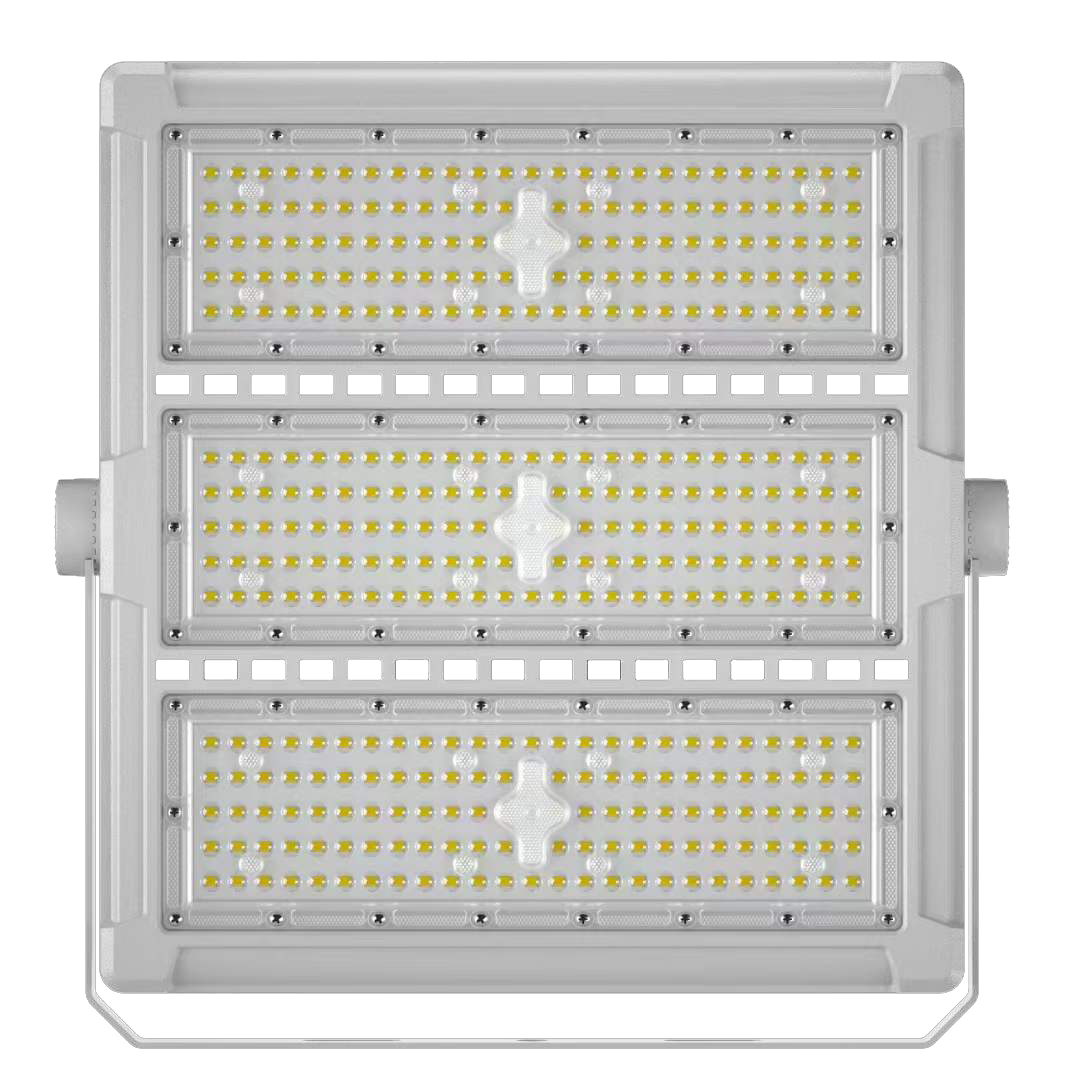

SLS110-300W-3
SLS110-400W-4
SLS110-400W-2
SLS110-500W-3
SLS110-600W-3
技術參數表
No. | 參數名稱Nameofparameter | 規格型號及參數表Specification model and technical data | ||||||||
1 | 型號Type | SLS100-50W | SLS100-100W | SLS100-150W | SLS100-200W | SLS100-250W | SLS100-300W | SLS100-400W | SLS100-500W | SLS100-600W |
2 | 功率Rated power | 50W | 100W | 150W | 200W | 250W | 300W | 400W | 500W | 600W |
3 | 電壓范圍Allowable operating voltage range | AC220-240V | AC220-240V | AC220-240V | AC220-240V | AC220-240V | AC220-240V | AC220-240V | AC220-240V | AC220-240V |
4 | 功率因數 Power factorPF | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 |
5 | 總諧波 Total harmonic distortion | ≤15% | ≤15% | ≤15% | ≤15% | ≤15% | ≤15% | ≤15% | ≤15% | ≤15% |
6 | 耐壓Electric strength | 1500V | 1500V | 1500V | 1500V | 1500V | 1500V | 1500V | 1500V | 1500V |
7 | 角度Distribution Angle | 30°/60°/90° | 30°/60°/90° | 30°/60°/90° | 30°/60°/90° | 30°/60°/90° | 30°/60°/90° | 30°/60°/90° | 30°/60°/90° | 30°/60°/90° |
8 | 顯色指數CRI(color rendering index)Ra | ≥/70 | ≥/70 | ≥/70 | ≥/70 | ≥/70 | ≥/70 | ≥/70 | ≥/70 | ≥/70 |
9 | 色溫Color temperatureCCT | 3000K/6000K | 3000K/6000K | 3000K/6000K | 3000K/6000K | 3000K/6000K | 3000K/6000K | 3000K/6000K | 3000K/6000K | 3000K/6000K |
10 | 光效 Whole light effect(lm) | 115-160 | 115-160 | 115-160 | 115-160 | 115-160 | 115-160 | 115-160 | 115-160 | 115-160 |
11 | 環境溫度Operating ambient temperature | -20~45° C | -20~45° C | -20~45° C | -20~45° C | -20~45° C | -20~45° C | -20~45° C | -20~45° C | -20~45° C |
12 | 壽命Life | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs |
13 | 防雷保護 Lightning and surge protection rating | ≥6K | ≥6K | ≥6KV | ≥6KV | ≥6KV | ≥6KV | ≥6KV | ≥6KV | ≥6KV |
14 | 防護等級IP Grade | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 |
